U-Shape Aluminum Surveillance Camera Mount with Telescopic Arm - White

U-Shape Aluminum Security Camera Mount with Telescopic Arm - Outdoor Universal Hanging Bracket - 60-120cm

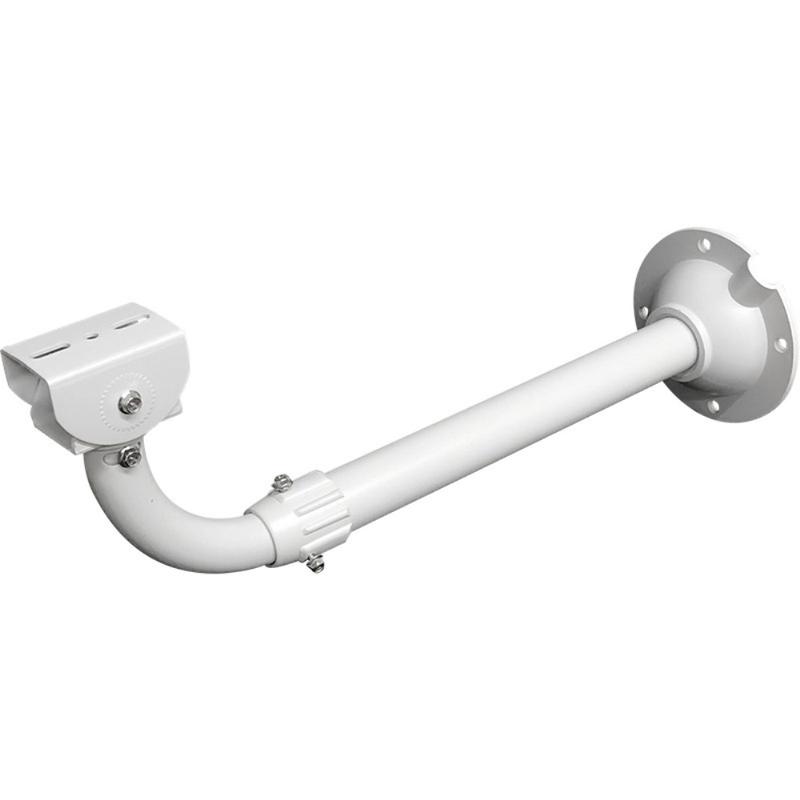

The U-shape aluminum alloy CCTV camera mount is a robust and adjustable hanging bracket designed for secure outdoor surveillance installations. Its professional-grade construction and extended reach make it ideal for positioning cameras exactly where they are needed, even in challenging environments.

High-Strength Aluminum Alloy Construction
Manufactured from high-grade aluminum alloy, the bracket offers excellent durability, corrosion resistance and long-term stability. It is well suited for outdoor use where weather resistance and structural reliability are essential.

Telescopic Arm with Wide Adjustment Range
The intelligent telescopic arm extends from 60 cm to 120 cm, allowing flexible placement for walls, poles or overhangs. This wide adjustment range helps achieve optimal camera positioning without the need for additional extensions.

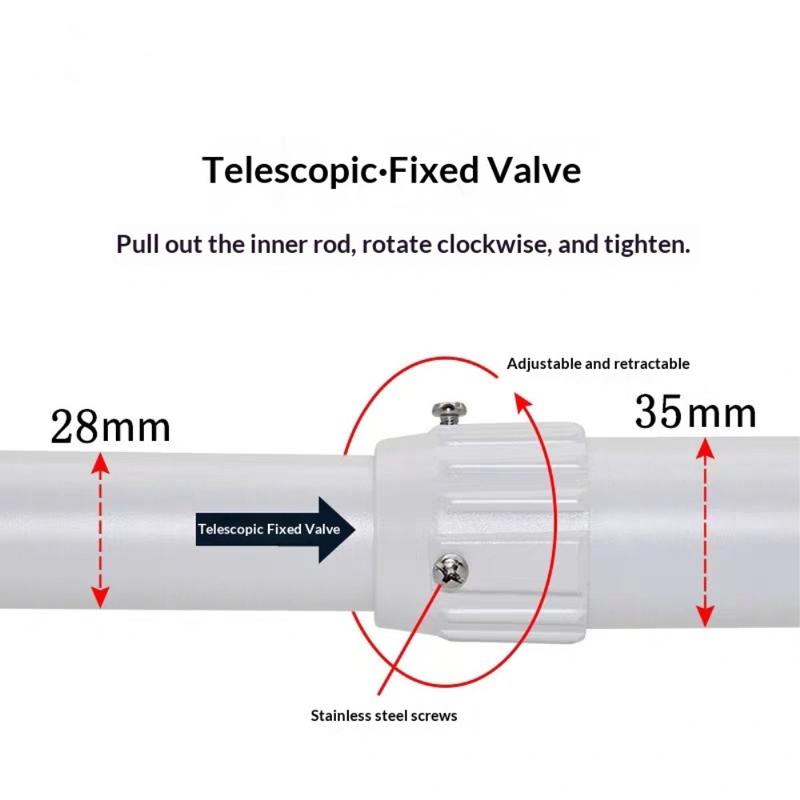

Simple Locking Mechanism for Fast Setup
An integrated locking valve system enables quick and easy installation. Simply extend the inner rod to the desired length and rotate to lock it securely in place, ensuring firm support during long-term use.

Flexible 180° Rotation for Accurate Viewing Angles
The bracket supports 180-degree rotation, allowing precise adjustment of the camera angle. This flexibility helps eliminate blind spots and ensures comprehensive monitoring coverage.

Stable Mounting with Stainless Steel Fasteners
All connection points use stainless steel screws, providing a secure and vibration-resistant installation. This ensures the camera remains stable even in outdoor conditions such as wind or temperature changes.

Key Features
- Outdoor CCTV hanging bracket with U-shape design
- High-strength aluminum alloy construction
- Telescopic arm adjustable from 60 cm to 120 cm
- Quick locking valve for easy setup
- 180° adjustable rotation for flexible positioning
- Stainless steel fasteners for secure installation
- Suitable for various surveillance camera models

Specifications
- Material: Aluminum alloy
- Outer Tube Diameter: 35 mm
- Inner Tube Diameter: 28 mm
- Telescopic Length: 60-120 cm
- Rotation Range: 180°

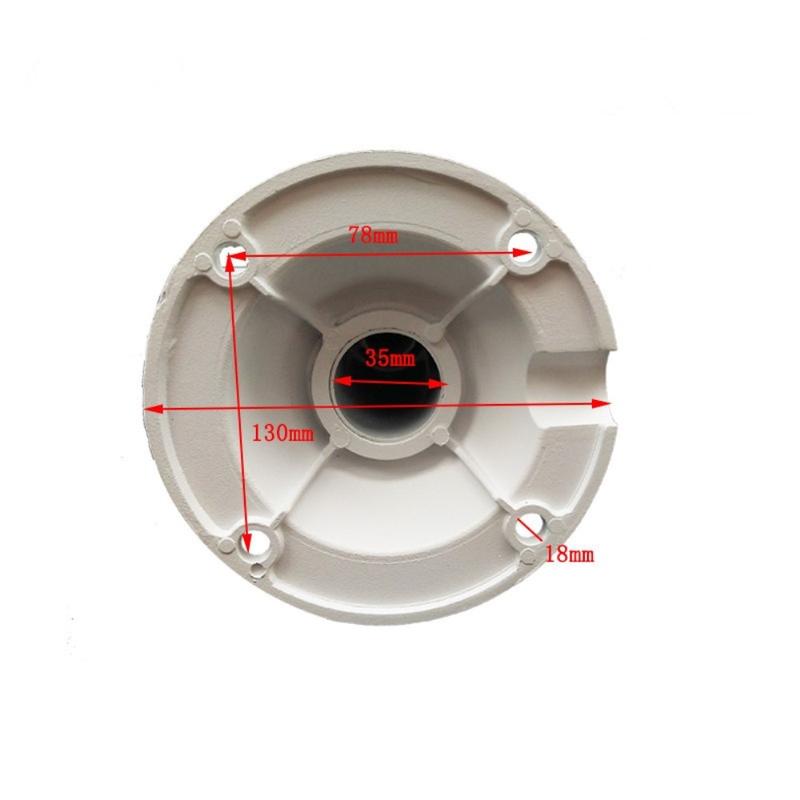

- Base Diameter: 130 mm
- Base Mounting Hole Distance: 78 mm
- Base Centre Hole Diameter: 35 mm

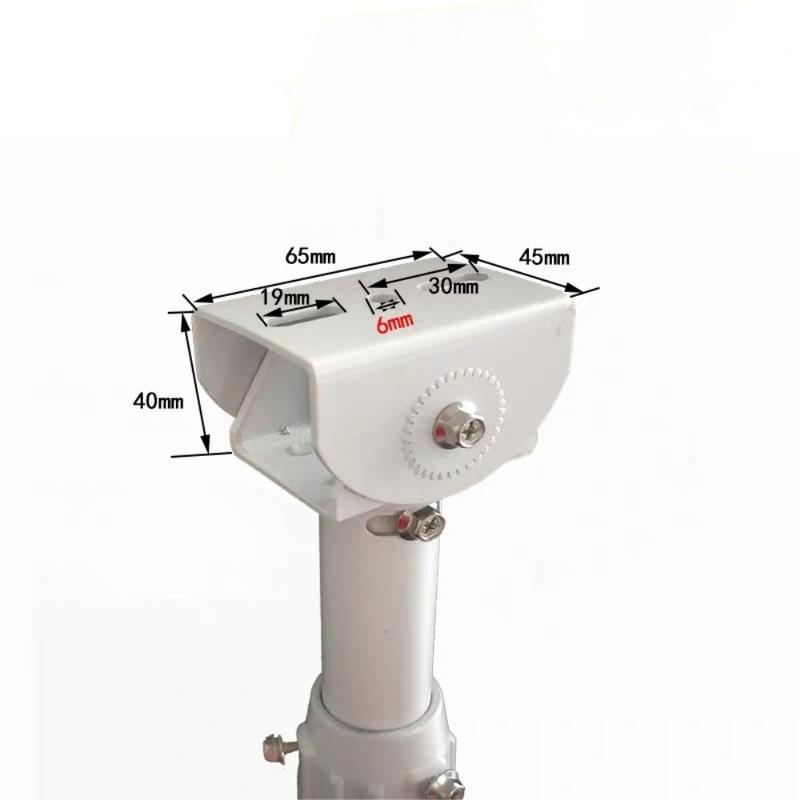

- Bracket Head Dimensions: 65 × 45 × 40 mm
- Head Mounting Hole Size: 30 × 19 mm
- Head Mounting Hole Depth: 6 mm

Ideal Usage Examples
- Outdoor CCTV installation on walls or eaves
- Extending camera reach over entrances or driveways
- Industrial and commercial surveillance setups
- Mounting cameras above walkways or open areas
- Situations requiring adjustable camera distance from the wall

Why This Product Is Perfect to Buy
This mount delivers strength, flexibility and professional installation quality in one solution. The telescopic arm, durable materials and easy adjustment make it ideal for users who need precise camera positioning with long-term reliability.

Interesting Facts
- Telescopic CCTV mounts allow wider coverage without relocating the camera base
- Aluminum alloy is commonly used in outdoor mounts due to its strength-to-weight ratio
- Adjustable hanging brackets help reduce blind spots in elevated surveillance setups

Packing: Euroblister
